TurboInlet Audi A6 C6 3.0 TDI – First Test Results and CFD Data

With our new TurboInlet for the Audi A6 C6 3.0 TDI, we are starting the development of another performance upgrade for the VAG diesel platform.

The focus of this project was clearly on optimized airflow, reduced restrictions in the intake tract, and a significantly more efficient flow to the turbocharger. At the same time, we wanted to eliminate the standard resonance chambers to structurally simplify the air path and potentially positively influence the intake noise.

Development Status

The design of the new inlet is already complete, and the first prototypes are currently undergoing real-world installation and performance testing at TMR GmbH.

The most important points have already been confirmed:

  • Perfect fit in the vehicle is confirmed
  • OEM connection works as planned
  • First successful test installation completed

Further performance and practical tests are now underway to more precisely analyze the effects on driving behavior, airflow, and possible sound characteristics.

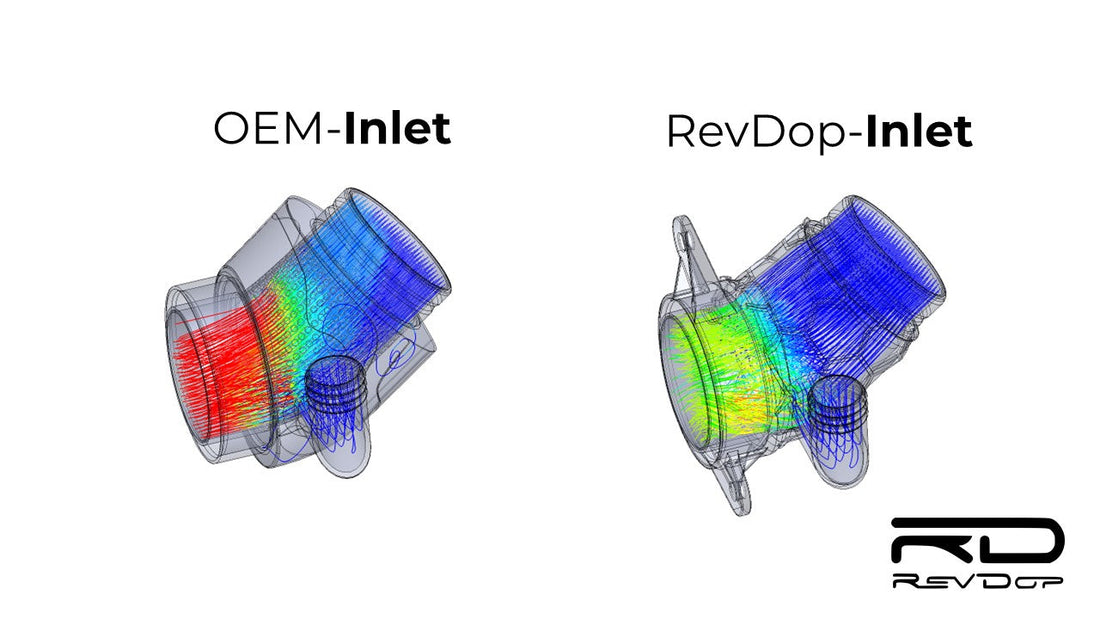

CFD Simulation Successfully Completed

Even before the first prototype, extensive CFD flow simulations were carried out to specifically optimize the airflow within the inlet.

The results speak for themselves:

  • up to 80% reduced pressure loss compared to the OEM inlet
  • approx. 10% increased fluid volume
  • significantly more homogeneous pressure distribution
  • laminar and more even flow to the turbocharger
  • reduced turbulence compared to the series solution

Particularly striking was the influence of the OEM part's standard resonance chambers. These create significant turbulence and inhomogeneous pressure areas within the flow, which were specifically eliminated in the new design.

This results in a much smoother and more efficient airflow to the turbocharger.

Resonance Chambers Removed – More Sound Possible?

An additional interesting point is the removal of the OEM resonance chambers.

Since these components primarily serve to reduce noise as standard, it is possible that the new inlet will result in a significantly more present intake noise in the future.

How strongly this will be noticeable in real driving conditions is currently being investigated as part of the performance and road tests.

Currently Under Test at TMR GmbH

The current tests at TMR GmbH focus on:

  • real behavior under load
  • performance effects
  • airflow behavior during driving
  • possible changes in intake noise
  • long-term and everyday suitability

As soon as further data and test results are available, they will be published in the next development update.

Platform & Future

The current inlet was primarily developed for the Audi A6 C6 3.0 TDI.

Since many VAG vehicles use similar engine and turbo platforms, we are already investigating further applications on other vehicles within the group.

The final compatibility list will follow after completion of all testing phases.

Conclusion

The new RevDop TurboInlet for the Audi A6 C6 3.0 TDI is already showing very strong results in the development phase.

With massively reduced pressure loss, optimized flow guidance, and increased volume, the new design creates a significantly more efficient basis for the turbocharger's air supply.

The upcoming practical tests will now show how these improvements manifest in real driving conditions and possibly acoustically.
