Intake system suitable for VW Passat B8 2.0 TDI with ea288 engine

Our bionically designed air filter box for the VW Passat B8 with the 2.0 TDI ea288 engine optimizes airflow with minimal flow losses. The significantly reduced pressure drop increases engine efficiency. Your diesel engine will also gain a more aggressive and dominant intake sound. We are offering you a new option for diesel tuning!

Advantages of our bionically designed air filter box:

• Increase in power and torque across the entire rev range ( Max +12 hp / Max +30 Nm )
• Pressure loss reduction of up to 35% through organic geometry of the flow space.
• Prevents flow separation and backflow/turbulence.
• Engine efficiency is increased
• Reduction of CO2 emissions, less fuel consumption (up to 0.32l/100km)
• Relief of the axial bearing of the turbocharger
• More homogeneous flow across the filter element
• Use of a specially developed filter with rounded corners
• Plug & Play
• Improved intake sound

Bionically developed flow geometry:

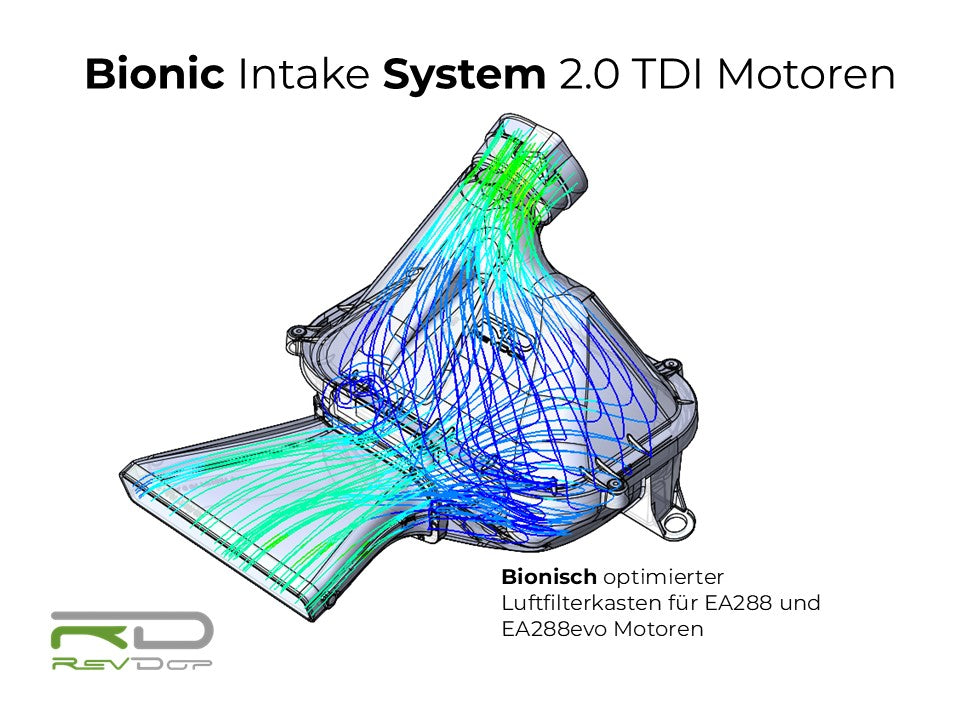

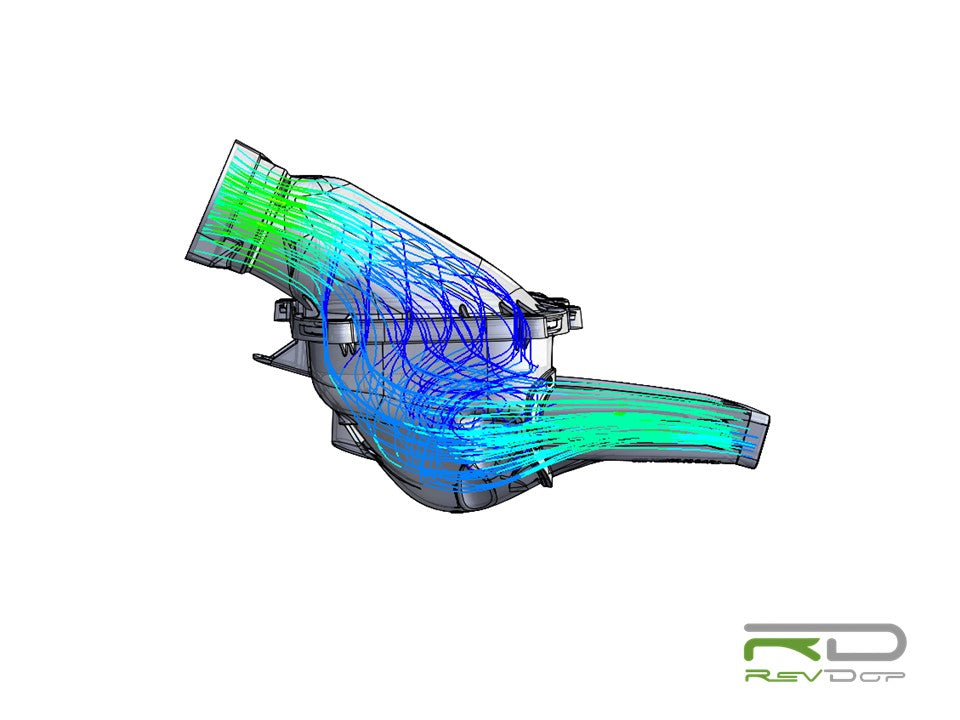

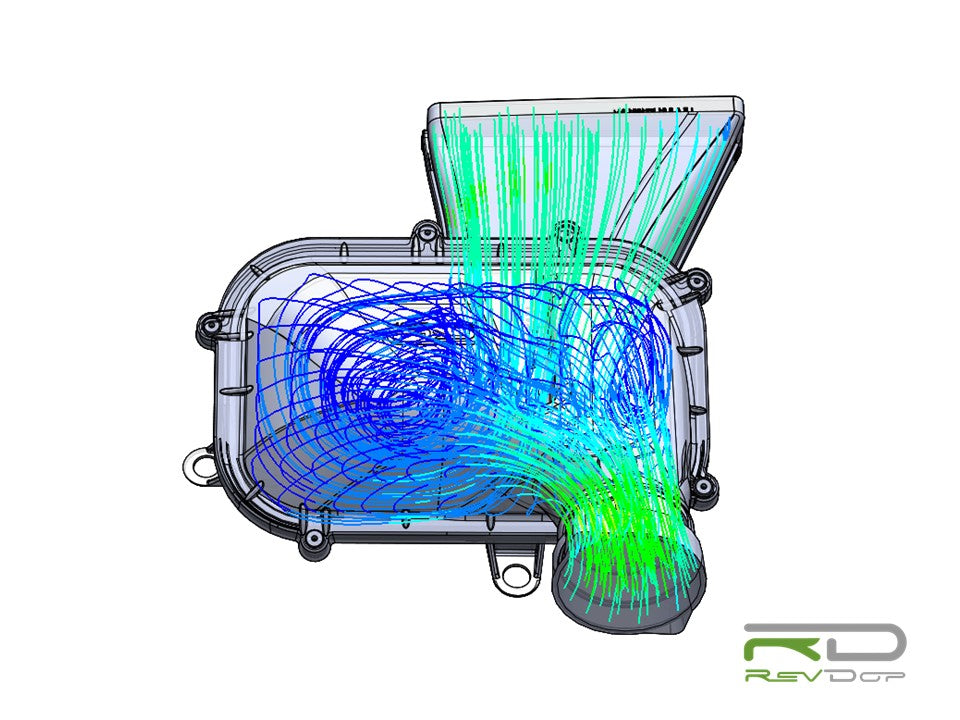

We combine nature and technology in our flow-guiding components. The bionically designed air filter box reduces pressure loss by up to 40% compared to the original air filter box. We achieve this by using state-of-the-art computational fluid dynamics (CFD) to design the flow path with minimal flow losses and separation. We adapt the air filter box geometry to the flow, not the other way around. Internal turbulence is reduced by an average of 35% compared to the OEM system, allowing the engine to draw in air more easily and increasing overall engine efficiency. These factors result in improved responsiveness and more agile engine/turbocharger acceleration ( up to 30 Nm more torque at 1500 rpm) . Components such as the turbocharger's axial bearings are relieved of stress through easier intake, leading to a longer service life. The bionically designed air filter box exhibits no or only minimal changes in airflow. As a result, the system operates within the optimal range specified by the manufacturer.

Fuel consumption reduction:

The bionic geometry not only ensures greater performance but also increased efficiency. CO2 and nitrogen oxide emissions are reduced, as is fuel consumption. A significant improvement in power and responsiveness is achieved in the relevant lower RPM range, where the vehicle operates approximately 80% of the time. In collaboration with Lt. Prof. Dr.-Ing. Klaus Schreiner, Professor of Internal Combustion Engines and Mathematics at the University of Konstanz, we were able to theoretically demonstrate that reducing pressure loss by 40% can reduce fuel consumption by up to 0.32 liters per 100 km.

Proven performance improvement

RevDop is the only manufacturer proven to optimize diesel intake systems without software modifications. We don't use dubious dyno runs with questionable results. If one of our products doesn't deliver benefits, it doesn't go into production. We've had our air filter box tested on dynamometers at renowned companies like APR, Oettinger, and Public Racing. All of them showed that we were able to increase efficiency across the entire rev range. We're taking diesel tuning to a whole new level!

specially developed air filter

For our bionically optimized air filter housing, we developed a specially designed air filter that guarantees optimal airflow. Due to the cost-effective manufacturing of OEM air filter housings, standard rectangular plate filters are preferred. However, since the flow-guiding components before and after the filter element are usually round or elliptical, the intake air still has to pass through the rectangular air filter. The air must therefore travel from a rounded geometry through a square one and back through another round one to find its way through the housing. Our rounded plate filters solve this problem and thus also increase efficiency.

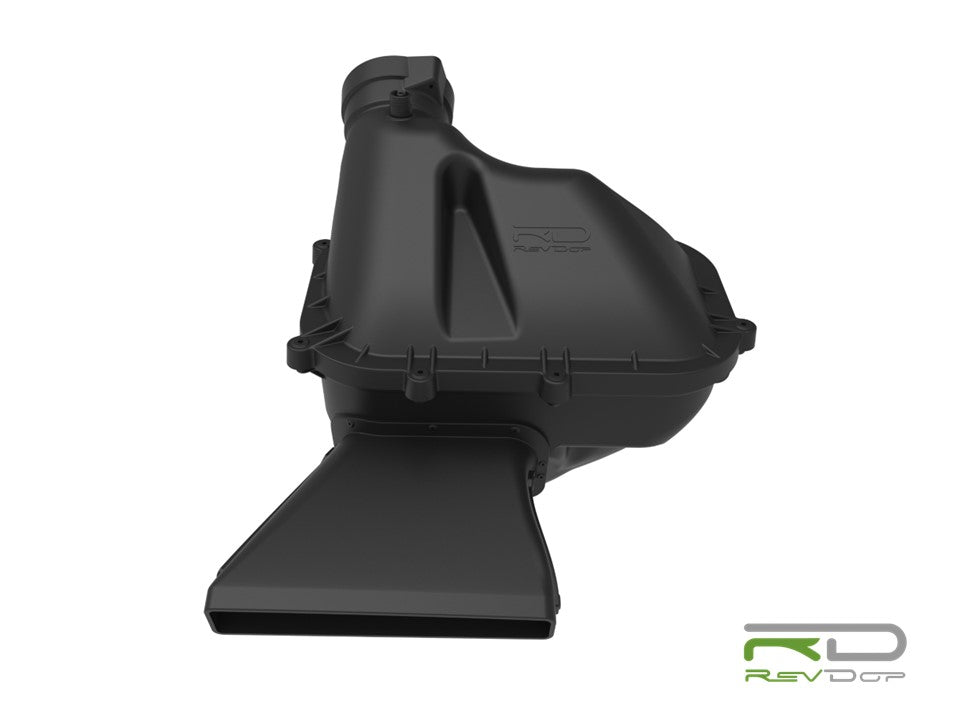

Materials and in-house manufacturing

We spent years researching and developing our own independent production facility. Our intake systems are manufactured from high-quality polyurethane using our own mixing and dosing system. We use a temperature-resistant and tough-elastic material. In our developments, we constantly strive to combine automotive standards with innovative manufacturing techniques. Our material is resistant to oils, greases, and water.

Plug and Play solution

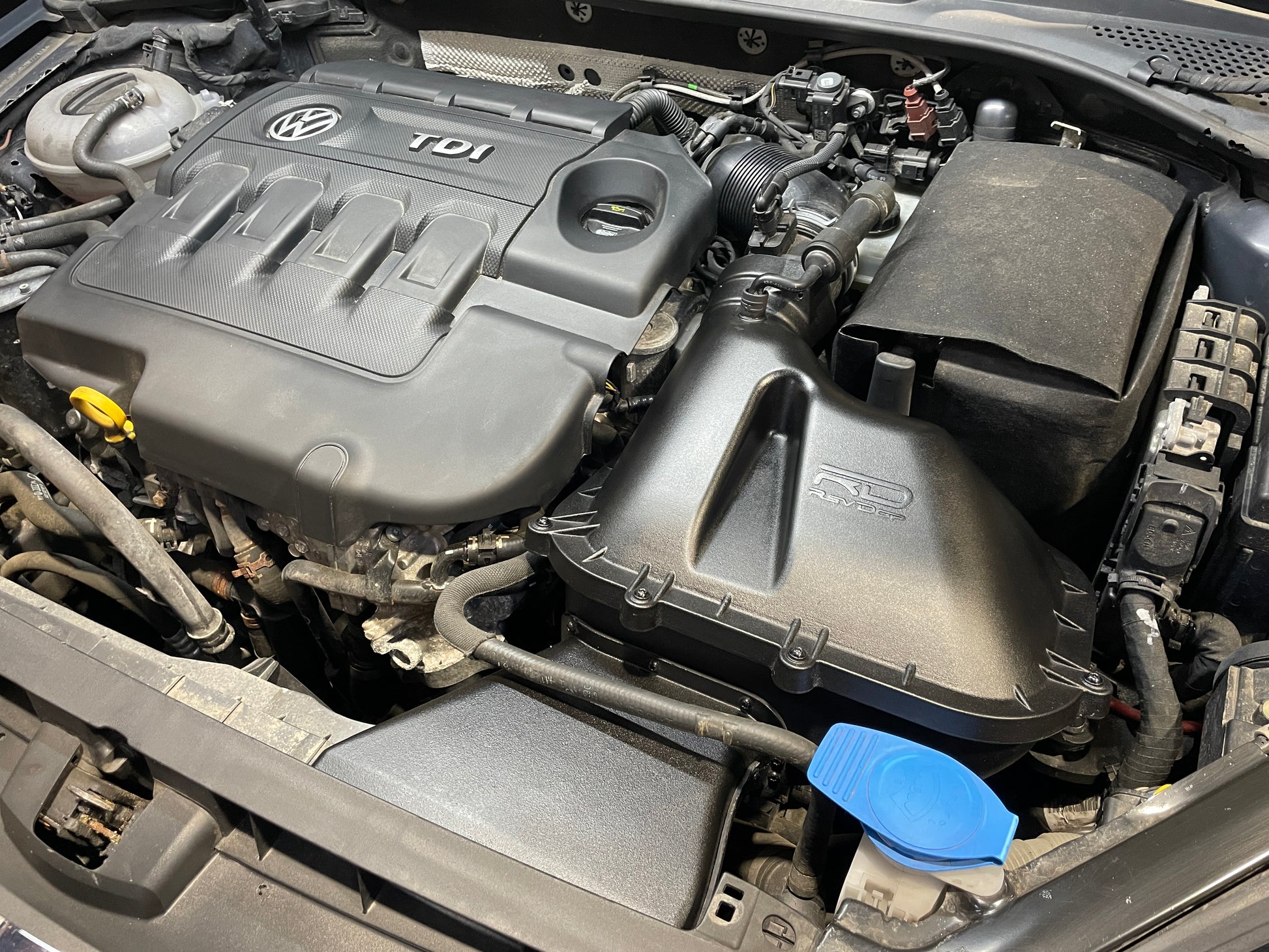

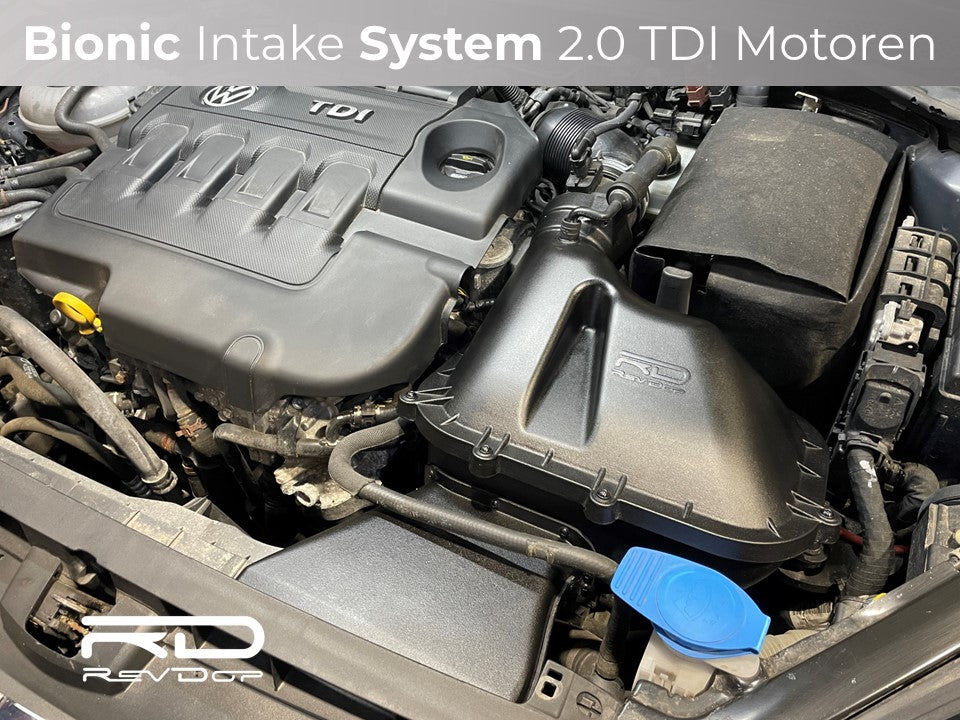

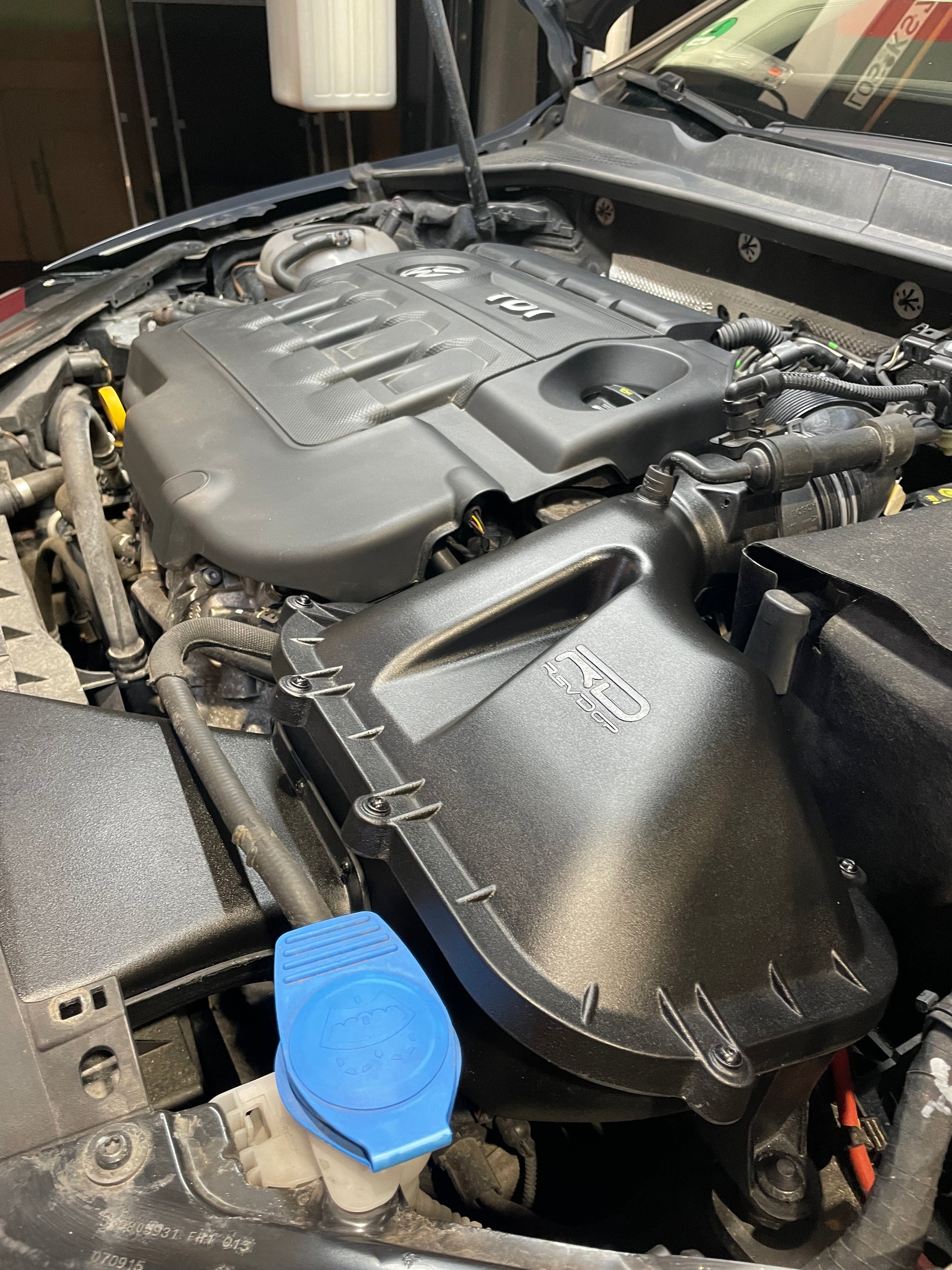

Our bionic air filter box replaces the original one and fits plug and play.

More sound

The straight airflow into the air filter box noticeably improves the intake sound. The turbocharger whine is much more audible. Inside the car, you can hear the turbocharger hiss when you let off the gas. The engine simply sounds more powerful!

Suitable for the following vehicles

Our bionic air filter box fits almost all 1.6 and 2.0 TDI engines of the ea28 8 generation and the new ea288 evo engine generation.

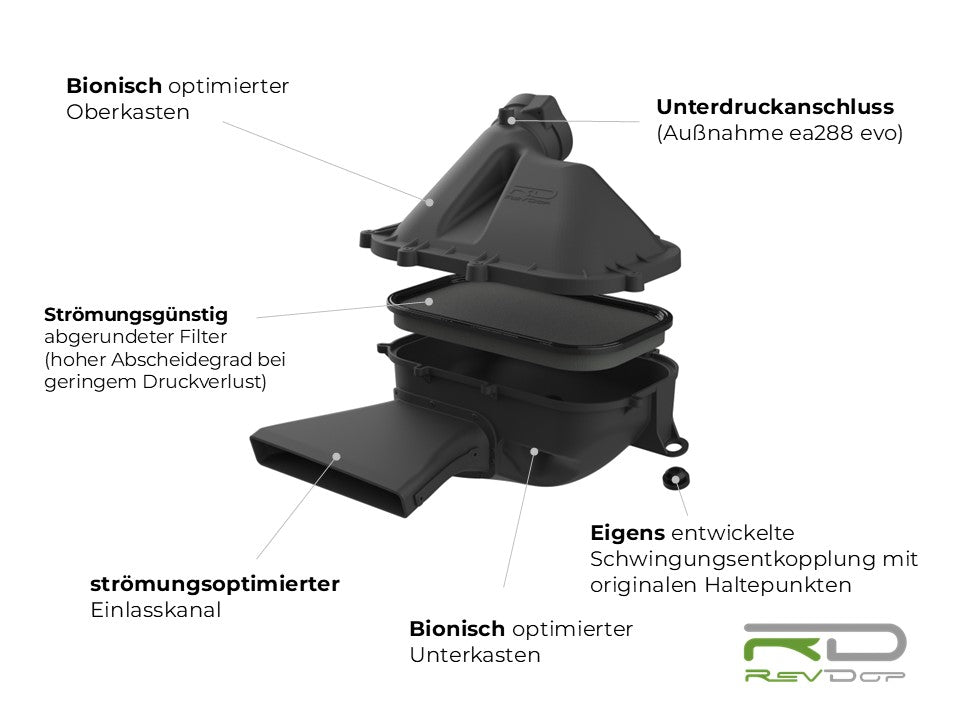

Scope of delivery

Complete bionic air filter box (upper and lower part)

rounded performance plate filter

screws

A notice:

This product is in the beta phase and does not yet have road traffic approval. This product is in no way affiliated with Volkswagen AG, R-GmbH, or any other automotive manufacturer and is a proprietary product developed and manufactured by RevDop.
